碗篮全自动柔性焊接生产线

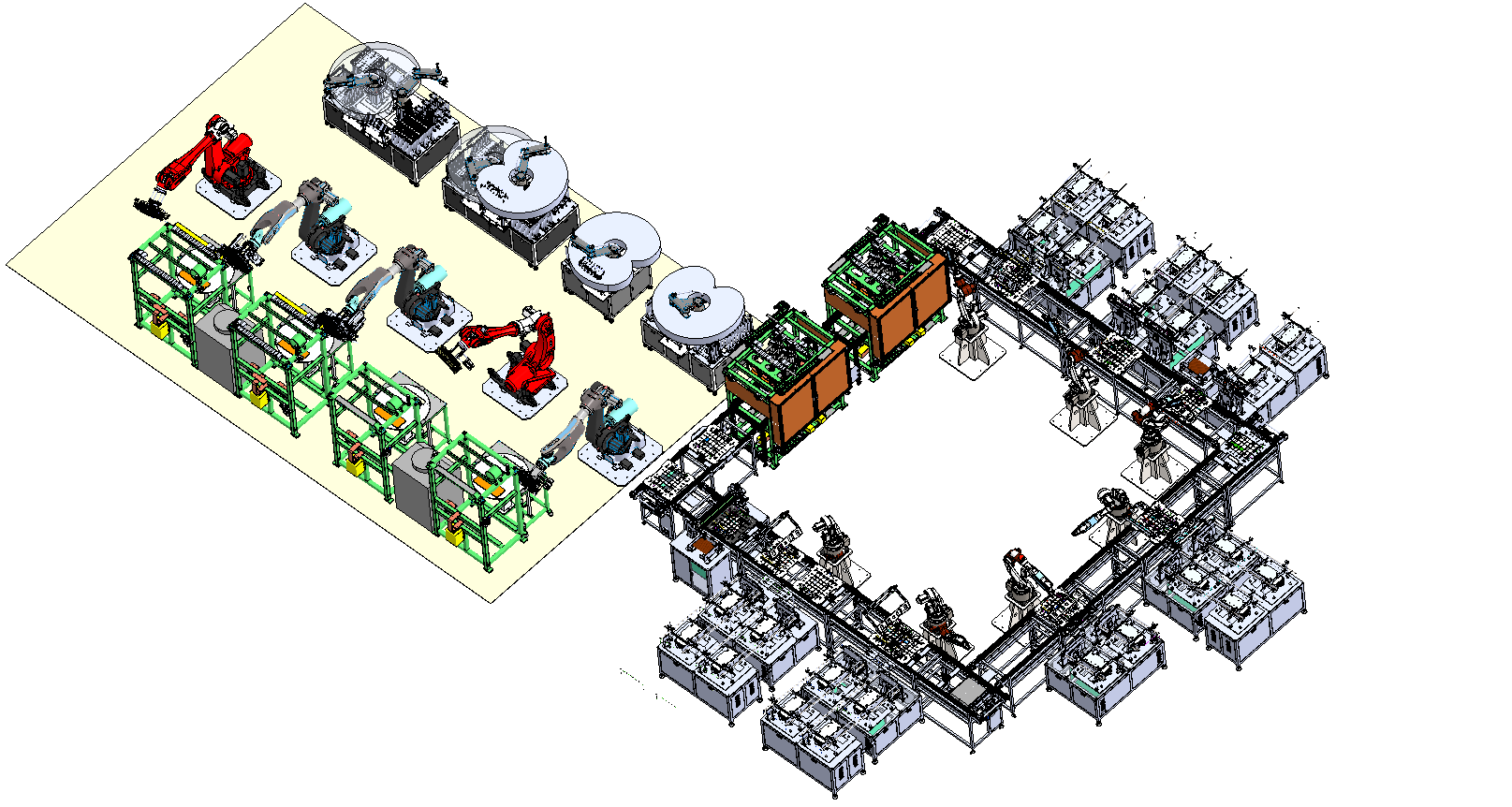

       本生产线为洗碗机碗篮全自动组合焊接线，主要由6台自动组合焊机、18台工业机器人、17套储送料装置和运行自检系统组成。新型焊接机构全面降低焊接耗材，工业机器人联动系统实现整线全自动无人运行，柔性化设计实现不限规格共线分时生产，自检测系统实现整线无忧运行。
       焊后成品无需矫正，产能节拍≤30秒/件，一次通过率达到99%，产成品率可达99.99%。

     THIS PRODUCTION LINE IS THE AUTOMATIC COMBINATION WELD- ING LINE FOR DISHWASHER BOWL BASKET, MAINLY COMPOSED OF 6 SETS OF AUTOMATIC COMBINATION WELDING MACHINES, 18 SETS OF INDUSTRIAL ROBOTS, 17 SETS OF MATERIAL STORAGE AND FEEDING DEVICES AND SELF-CHECKING SYSTEM. THE NEW WELDING MECHA- NISM CAN REDUCE THE WELDING CONSUMABLES, THE INDUSTRIAL ROBOT LINKAGE SYSTEM CAN REALIZE FULLY AUTOMATIC OPERA- TION, THE FLEXIBLE DESIGN CAN REALIZE UNLIMITED-SPECIFICATION COLLINEAR TIME-SHARING PRODUCTION, AND THE SELF-TESTING SYSTEM CAN REALIZE FULLY WORRY-FREE OPERATION.
     THERE IS NO NEED TO CORRECT THE FINISHED PRODUCT AFTER WELDING. THE OUTPUT RATE IS LESS THAN 30 SECONDS/PIECE, THE PASS RATE IS 99% AND THE YIELD RATE IS 99.99%.

设备尺寸：22700 x 13700 x 2149MM/焊接水平高度1145MM

焊接范围：各种规格洗碗机碗篮

设备焊接类型：铁线、不锈钢线

系统最大气压：0.7MPA

系统额定工作压力：0.5MPA

电源电压：3相 AC 380V±10% 50HZ、控制箱路220V
